Product Name:

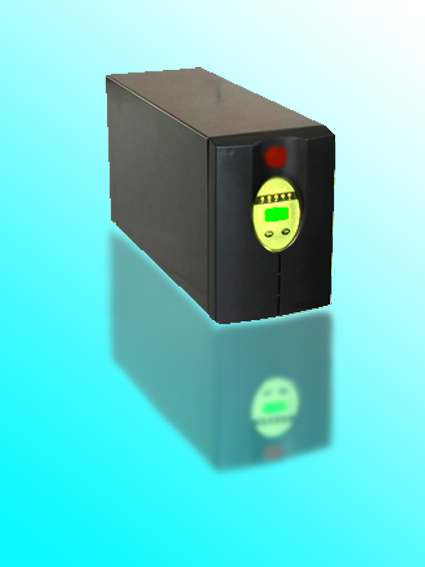

High Frequency Online BXG-HF-1K/3K
Product Category:
高频在线式系列UPS
Power range:
1000VA-3000VA
Work:
High Frequency Online UPS
Applications:
Workstations, small-medium-sized departmental Data Center Power
Details:
·
BXG-HF-1K/3K
Technical parameter for HF series
Product Name： BXG-HF-1K/3K
· Product Category： High Frequency Online UPS
· Power Range：1000VA-3000VA
· Work： High Frequency Online
· Applications： Workstations, small-medium-sized departmental Data Center Power
·
|
Mode |
HF1K |
HF2K |
HF3K |
|
Capacity |
1000VA/700W |
2000VA/1400W |
3000VA/2100W |
|
Input voltage range
|
(118±5~300±5)VAC when load＜50%
(140±5~300±5)VAC when 50%≤load＜70%
(160±5~300±5)VAC when load≥70% |
|
Input frequency range |
40~60Hz (adjustable) |
|
Input power factor |
≥0.95 |
≥0.97 |
|
Output voltage |
220VAC±2% |
|
Output frequency in battery mode |
50Hz±0.2%
|
|
Waveform distortion |
≤3% (linear load) |
≤4% (linear load) |
|
Overload capacity |
bypass after 200ms when ≥ 150%, or 30s when ≥ 110% |
|
Crest factor |
3 ：1 (max) |
|
Battery voltage |
36V |
96V |
|
Backup time
(by built-in battery) |
6 min (full load)
14 min (half load) |
9.5 min (full load) 21 min (half load) |
7.5min (full load)
17.5 min (half load) |
|
Transfer time |
≤4ms (line mode bypass mode) or
0 ms (line mode battery mode) |
|
Physical dimension
(W * H * D) |
145 x 220 x 405
|
195 x 330 x 455
|
195 x 330 x 455
|
|
Weight (kg)
(Built-in battery or non) |
13/7.5
|
32/15
|
33/16
|
|
